OF 1400 EQ-F-Plus Router 578951
OF 1400 EQ-F-Plus Router 578951
OF 1400 EQ-F-Plus Router 578951
OF 1400 EQ-F-Plus Router 578951
OF 1400 EQ-F-Plus Router 578951
OF 1400 EQ-F-Plus Router 578951

OF 1400 EQ-F-Plus Router 578951

$1,109.00
Shipping calculated at checkout.
✔ In Stock

Product Number 578951

Advanced power. Clear precision.

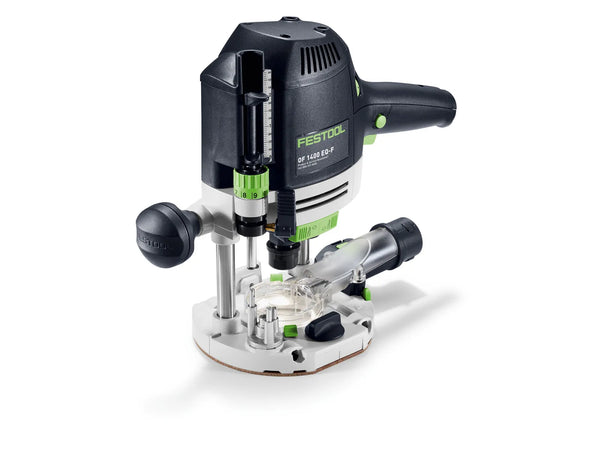

The OF 1400 Router provides 1400 watts of power in a machine that weighs less than 10 lbs. It accepts 1/2", 1/4" or 8 mm bits. With enough power to handle most routing tasks and small enough to be extremely maneuverable, the OF 1400 is the one router every tradesperson should own. With a category-leading 2 3/4" plunge depth, precise to 1/256" (1/10 mm), this router gives you the power, precision, depth of cut, and dust extraction capabilities that will simplify your routing tasks.

  • Dual‑sided guide column clamping provides ridgid stability, keeping the router steady for optimum accuracy on every pass.
  • Swap template guides and base plates tool‑free, so you can move effortlessly between different tasks without slowing down.
  • The spindle stop with ratcheting action makes bit changes quick and simple.

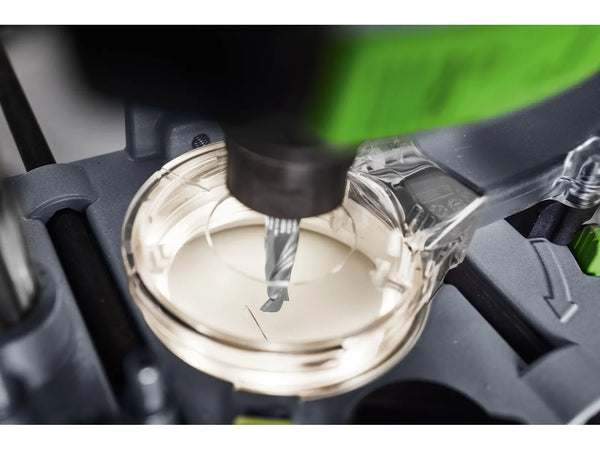

  • The dust extraction hood's integrated LED light ring illuminates your work area perfectly, ensuring you see every detail as you cut.
  • Fine depth adjustment is simple and accurate to 1/256 " (1/10 mm), with a generous 3/4" (20 mm) range for maximum control.
  • Achieve up to 99% dust extraction with the chip catcher and dust hood keeping edges sharp and your work area cleaner.
  • MMC Electronics maintain constant speed for smooth routing action and reliable cut quality across materials.

Specifications

Power consumption - 1 400 watt
Idle engine speed - 10 000 - 22 500 RPM
Routing stroke - 2-3/4" (70 mm)
Weight - 10.36 lbs (4.6 kg)
Routing depth fine adjustment range - 5/16" (8 mm)
Drive type - 120 VAC
Collet dia. - 1/4" - 1/2" (6 - 12.7 mm)
Dust extraction connection dia. - 1-1/16"/1-7/16" (27/36 mm)
Bench opening - 2-1/2" (63 mm)
Cable length - 13.123 ft (4 m)

Noise and vibration values

Routing: Uncertainty (vibration) K - 1.50 m/s²
Routing: Uncertainty (noise) K - 1.50 dB
Routing: Total vibration average, Ah - 2.50 m/s²
Routing: Standards series EN - 62841-2-17
Routing: A-weighted sound pressure level, LpA - 98.00 dB(A)
Routing: A-weighted sound power level, LWA - 106.00 dB(A)

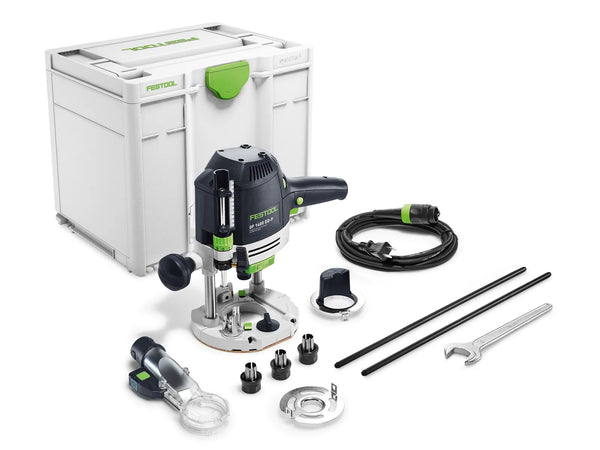

Contains
8 Article
- Extraction Hood with Light Module
LM-OF 1400
- Chip Catcher
KSF-OF 1400
- Collet
SZ-D 6,35/OF 1400/2000/2200
- Collet
SZ-D 8,0/OF 1400/2000/2200
- Collet
SZ-D 12,0/OF 1400/2000/2200
- open ended wrench
- plug it-Power Cord
SJO 16 AWG-4
- Systainer³
SYS3 M 337

    Product Description

    Product Number 578951

    Advanced power. Clear precision.

    The OF 1400 Router provides 1400 watts of power in a machine that weighs less than 10 lbs. It accepts 1/2", 1/4" or 8 mm bits. With enough power to handle most routing tasks and small enough to be extremely maneuverable, the OF 1400 is the one router every tradesperson should own. With a category-leading 2 3/4" plunge depth, precise to 1/256" (1/10 mm), this router gives you the power, precision, depth of cut, and dust extraction capabilities that will simplify your routing tasks.

    • Dual‑sided guide column clamping provides ridgid stability, keeping the router steady for optimum accuracy on every pass.
    • Swap template guides and base plates tool‑free, so you can move effortlessly between different tasks without slowing down.
    • The spindle stop with ratcheting action makes bit changes quick and simple.
    • The dust extraction hood's integrated LED light ring illuminates your work area perfectly, ensuring you see every detail as you cut.
    • Fine depth adjustment is simple and accurate to 1/256 " (1/10 mm), with a generous 3/4" (20 mm) range for maximum control.
    • Achieve up to 99% dust extraction with the chip catcher and dust hood keeping edges sharp and your work area cleaner.
    • MMC Electronics maintain constant speed for smooth routing action and reliable cut quality across materials.

    Specifications

    Power consumption - 1 400 watt
    Idle engine speed - 10 000 - 22 500 RPM
    Routing stroke - 2-3/4" (70 mm)
    Weight - 10.36 lbs (4.6 kg)
    Routing depth fine adjustment range - 5/16" (8 mm)
    Drive type - 120 VAC
    Collet dia. - 1/4" - 1/2" (6 - 12.7 mm)
    Dust extraction connection dia. - 1-1/16"/1-7/16" (27/36 mm)
    Bench opening - 2-1/2" (63 mm)
    Cable length - 13.123 ft (4 m)

    Noise and vibration values

    Routing: Uncertainty (vibration) K - 1.50 m/s²
    Routing: Uncertainty (noise) K - 1.50 dB
    Routing: Total vibration average, Ah - 2.50 m/s²
    Routing: Standards series EN - 62841-2-17
    Routing: A-weighted sound pressure level, LpA - 98.00 dB(A)
    Routing: A-weighted sound power level, LWA - 106.00 dB(A)
    Contains
    8 Article
    - Extraction Hood with Light Module
    LM-OF 1400
    - Chip Catcher
    KSF-OF 1400
    - Collet
    SZ-D 6,35/OF 1400/2000/2200
    - Collet
    SZ-D 8,0/OF 1400/2000/2200
    - Collet
    SZ-D 12,0/OF 1400/2000/2200
    - open ended wrench
    - plug it-Power Cord
    SJO 16 AWG-4
    - Systainer³
    SYS3 M 337
