OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017
OF 1010 REBQ-Plus Router 578017

OF 1010 REBQ-Plus Router 578017

$835.00
Shipping calculated at checkout.
✔ In Stock

Product number 578017

Simply brilliant.

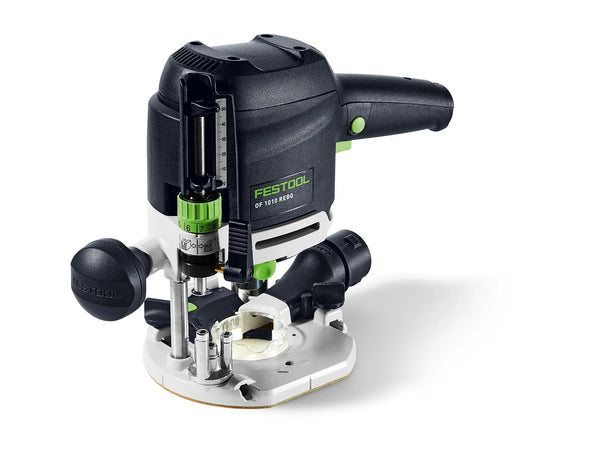

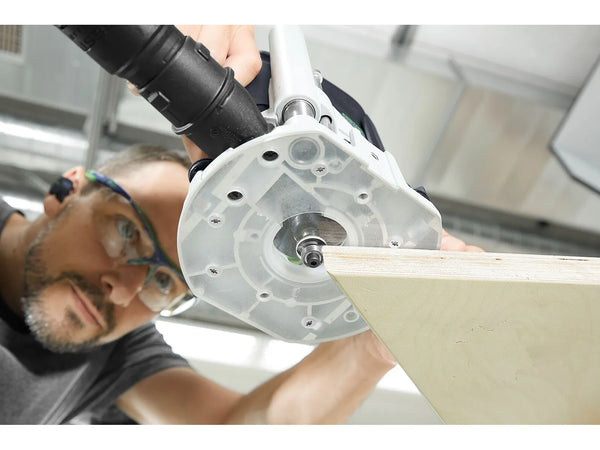

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

  • Ergonomic: Thanks to the compact design and low weight.
  • Unobstructed view: Clearly visible routing area.

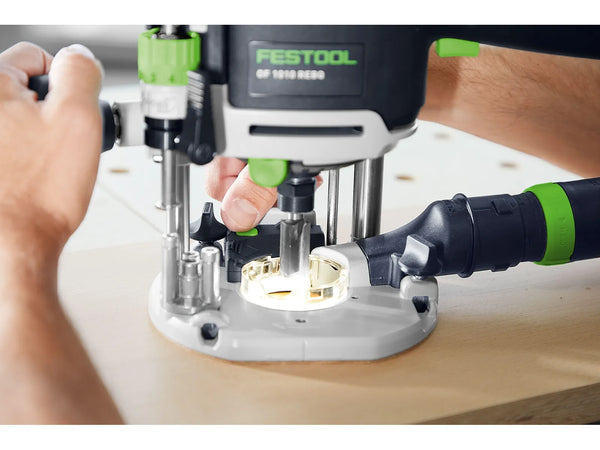

  • Well lit: Thanks to the rechargeable LED work light in the base.
  • Quick: Quick and easy bit changes.
  • Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm).
  • Steady: Torsionally rigid router base due to guide columns on both sides.

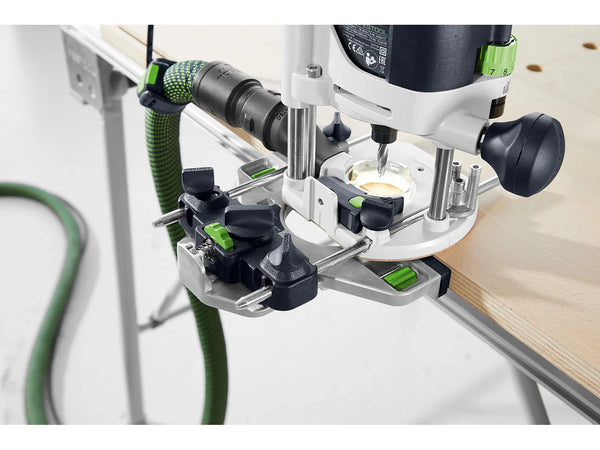

  • Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces.
  • Smart: Designed with restart protection.
  • Material specific: MMC electronics for optimal work and temperature monitoring.
  • Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.

Specifications

Power consumption - 1 010 watt
Idle engine speed - 9 500 - 23 000 RPM
Transport weight incl. accessories - 6.60 kg
Drive type - 120 VAC
Routing depth fine adjustment range - 5/16" (8 mm)
Weight - 7.06 lbs (3.2 kg)
Collet dia. - 1/4" - 5/16" (6 - 8 mm)
Dust extraction connection dia. - 1-1/16" (27 mm) / 1-13/32" (36 mm)
Routing stroke - 2-1/8" (55 mm)
Cable length - 13.123 ft (4 m)
Bench opening - 2" (50 mm)

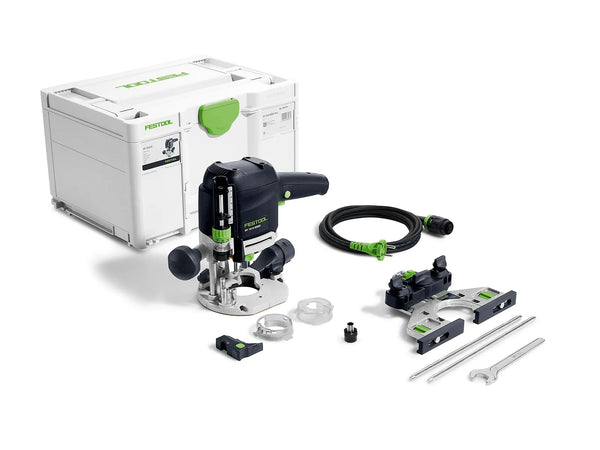

Contains
7 Article
- Edge Guide
SA-OF 1010/MFK
- Light Module
LM-OF 1010 R
- Collet
SZ-D 8/OF 1010
- Collet
SZ-D 6,35/OF 1010
- 19 mm open-end wrench
- plug it-Power Cord
SJO 16 AWG-4
- Systainer³
SYS3 M 237

    Product Description

    Product number 578017

    Simply brilliant.

    The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

    • Ergonomic: Thanks to the compact design and low weight.
    • Unobstructed view: Clearly visible routing area.
    • Well lit: Thanks to the rechargeable LED work light in the base.
    • Quick: Quick and easy bit changes.
    • Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm).
    • Steady: Torsionally rigid router base due to guide columns on both sides.
    • Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces.
    • Smart: Designed with restart protection.
    • Material specific: MMC electronics for optimal work and temperature monitoring.
    • Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.

    Specifications

    Power consumption - 1 010 watt
    Idle engine speed - 9 500 - 23 000 RPM
    Transport weight incl. accessories - 6.60 kg
    Drive type - 120 VAC
    Routing depth fine adjustment range - 5/16" (8 mm)
    Weight - 7.06 lbs (3.2 kg)
    Collet dia. - 1/4" - 5/16" (6 - 8 mm)
    Dust extraction connection dia. - 1-1/16" (27 mm) / 1-13/32" (36 mm)
    Routing stroke - 2-1/8" (55 mm)
    Cable length - 13.123 ft (4 m)
    Bench opening - 2" (50 mm)
    Contains
    7 Article
    - Edge Guide
    SA-OF 1010/MFK
    - Light Module
    LM-OF 1010 R
    - Collet
    SZ-D 8/OF 1010
    - Collet
    SZ-D 6,35/OF 1010
    - 19 mm open-end wrench
    - plug it-Power Cord
    SJO 16 AWG-4
    - Systainer³
    SYS3 M 237
