Regular price $1,889.00
Shipping calculated at checkout.

✔ In Stock

Product number 578544

Precision. Stability. Versatility. The Power Behind Every Joint.

Where precision meets power. Built to hold. Every wood joint has its strengths—and the DOMINO system brings them all together. The DOMINO joiner, paired with DOMINO Tenons, delivers strong, twist-proof connections with speed and accuracy. Clean, Precise Cuts: The pendulum cutting motion carves out elongated mortises that lock in tight and stay aligned. Stronger Joints: DOMINO Tenons combine the strength of mortise-and-tenon with the flexibility of biscuits—perfect for both fine furniture and heavy-duty builds. Built for Any Job: Whether you're working indoors or out, on delicate trim or thick panels, DOMINO gives you the stability and versatility you need. From the first cut to final assembly, DOMINO helps you connect with confidence.

  • Precise: The unique pendulum milling action delivers smooth, accurate mortises with minimal effort.
  • Quick & Easy: Built-in indexing pins make repeat tenon placement fast and foolproof.
  • Stable: The oval-shaped DOMINO Tenon creates twist-proof, rock-solid joints that hold tight.
  • Versatile: Tenons range from 4 x 20 mm to 10 x 50 mm and come in beech or weatherproof sipo—ready for indoor or outdoor builds.
  • Dialed In: Routing depths are preset to match tenon sizes and panel thickness—no guesswork needed.
  • Flexible: DOMINO connectors and fittings let you build strong furniture that can be taken apart when needed.
  • System Ready: Every accessory is designed to work seamlessly with the full DOMINO lineup.

Specifications

Power consumption - 420 watt
Idle engine speed - 25 500 RPM
Mitre routing - 0 - 90 °
Drive type - 120 VAC
Weight - 7.72 lbs (3.6 kg)
Routing height adjustment - 1/8" (5 mm) - 1-3/16" (30 mm)
Max. routing depth - 1-1/16" (28 mm)
Dust extraction connection dia. - 1-1/16" (27 mm)
Cable length - 13.123 ft (4 m)
DOMINO slot cutter dia. - 3/16" (4 mm)/1/8" (5 mm)/1/4" (6 mm)/5/16" (8 mm)/3/8" (10 mm)
Depth stop for routing depth - 12, 15, 20, 25, 28 mm

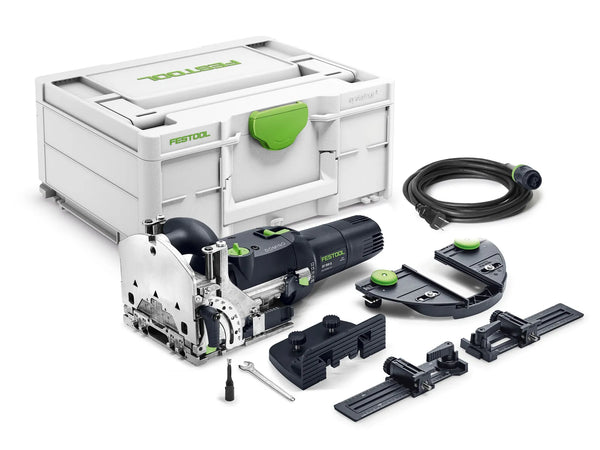

Contains
7 Article
- DOMINO Cutter
D 5-NL 20 HW-DF 500
- Support Bracket
ZA-DF 500/700
- Trim Stop
LA-DF 500/700
- Cross Stop
QA-DF 500/700
- plug it-Power Cord
SJO 18 AWG-4
- Systainer³
SYS3 M 187

    Product Description

    Product number 578544

    Precision. Stability. Versatility. The Power Behind Every Joint.

    Where precision meets power. Built to hold. Every wood joint has its strengths—and the DOMINO system brings them all together. The DOMINO joiner, paired with DOMINO Tenons, delivers strong, twist-proof connections with speed and accuracy. Clean, Precise Cuts: The pendulum cutting motion carves out elongated mortises that lock in tight and stay aligned. Stronger Joints: DOMINO Tenons combine the strength of mortise-and-tenon with the flexibility of biscuits—perfect for both fine furniture and heavy-duty builds. Built for Any Job: Whether you're working indoors or out, on delicate trim or thick panels, DOMINO gives you the stability and versatility you need. From the first cut to final assembly, DOMINO helps you connect with confidence.

    • Precise: The unique pendulum milling action delivers smooth, accurate mortises with minimal effort.
    • Quick & Easy: Built-in indexing pins make repeat tenon placement fast and foolproof.
    • Stable: The oval-shaped DOMINO Tenon creates twist-proof, rock-solid joints that hold tight.
    • Versatile: Tenons range from 4 x 20 mm to 10 x 50 mm and come in beech or weatherproof sipo—ready for indoor or outdoor builds.
    • Dialed In: Routing depths are preset to match tenon sizes and panel thickness—no guesswork needed.
    • Flexible: DOMINO connectors and fittings let you build strong furniture that can be taken apart when needed.
    • System Ready: Every accessory is designed to work seamlessly with the full DOMINO lineup.

    Specifications

    Power consumption - 420 watt
    Idle engine speed - 25 500 RPM
    Mitre routing - 0 - 90 °
    Drive type - 120 VAC
    Weight - 7.72 lbs (3.6 kg)
    Routing height adjustment - 1/8" (5 mm) - 1-3/16" (30 mm)
    Max. routing depth - 1-1/16" (28 mm)
    Dust extraction connection dia. - 1-1/16" (27 mm)
    Cable length - 13.123 ft (4 m)
    DOMINO slot cutter dia. - 3/16" (4 mm)/1/8" (5 mm)/1/4" (6 mm)/5/16" (8 mm)/3/8" (10 mm)
    Depth stop for routing depth - 12, 15, 20, 25, 28 mm
    Contains
    7 Article
    - DOMINO Cutter
    D 5-NL 20 HW-DF 500
    - Support Bracket
    ZA-DF 500/700
    - Trim Stop
    LA-DF 500/700
    - Cross Stop
    QA-DF 500/700
    - plug it-Power Cord
    SJO 18 AWG-4
    - Systainer³
    SYS3 M 187
